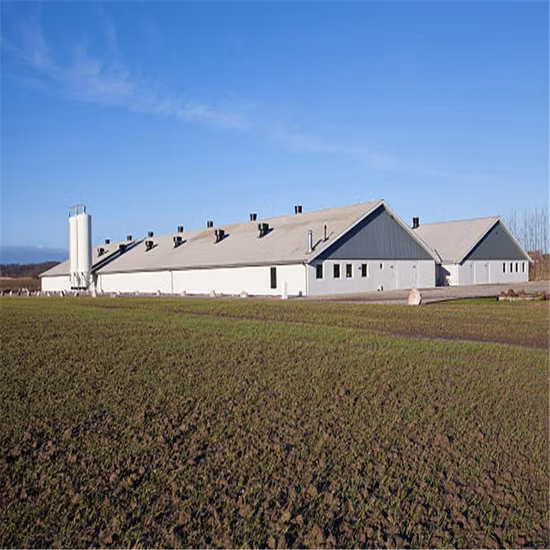

Prefabricated Steel Frame Construction Structure Poultry Farm Broiler Prefab Chicken House with Full Set Poultry Equipment for Chicken Factory

Basic Info

Model NO.	According To customer′s Demand
Grade	Q235B&Q355b Steel
Purlin	C Type or Z Type
Wall Panel	0.5mm Single or Sandwich Panel
Roof Panel	0.5mm Single or Sandwich Panel
Window	Aluminium Window or Model Steel Push-Pull Window
Door	Slidding Door or Rolling Door
Column and Beam	Welded H-Section and Hot Rolled I-Section
Surface	Two Layer of Anti-Rust Paniting
Certificate	CE, ISO9001, SGS
Rainspout	PVC Pipe
Transport Package	Packing in 40hq or Ot
Specification	According to customer′s demand
Trademark	tailong
Origin	Qingdao, China
HS Code	7308900000
Production Capacity	500000 Ton/Per Year

Product Description

Prefabricated Building Steel Frame Construction Structure Poultry Farm Broiler Prefab Chicken House With Full Set Poultry Equipment

Product Description

1. Closed Type ( with roof and wall panel cladding)
2. Open Type (no wall or wire mesh&curtain for wall)
3. It can be with different structure type,one is portal frame structure and another is roof truss structure.

As long as you can have your own thoughts, we will help you to realize it.

Poultry farm is mainly used for broiler and layer chicken, you can choose free range or cage system with automatic quipment to breed.

We can introduce our partner (the equipments' supplier )to you,then we work together to provide more workable project for you.

Product Specification

No.	Sort	Name	Specification:
1	Specification	length	No limited
2		Width	Less than 11m
3		Wall height	2600mm/2800mm
4		Clear height	2600mm/2800mm
5		Roof slope	15°
6	Standard accessory	Wall board	60mm rock wool sandwich panel,double 0.7mm steel sheet
7		False ceiling	75mm thickness double color-steel sandwich panel with polystyrene foam inside.
8		Roof board	color steel corrugated sheet, 0.5mm thickness
9		Outside door	Security door, single door with dimensions of 900*2100mm,door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.
10		Inside door	single door with dimensions of 750*2000mm,
11		Window(W-1)	PVC, white color, with dimensions of 1200*1200mm,
12		Window(W-2)	PVC, white color, with dimensions 500*500mm,
13		Channel	Galvanized Steel Plain Sheet press moulding Material: Q235. Painted
14		Post	Square steel tube Material: Q235. Painted
15		Purline	Square steel tube Material: Q235. Painted
16		Roof truss	Square steel tube Material: Q235. Painted
17		Decoration and connection	color steel sheet, 0.35mm thickness
18	Option	Decorative floor	PVC, laminated or ceramic tile
19		Drainage system	Provided plan, design and construction
20		Electric system	Provided plan, design and construction
21	Technical parameter	Bearing load	30kg/m2
22		Wind pressure:	0.45KN/M2
23		Fire proof	B2 grade
24		Resistant temperature	-20 ºC to 50º

Detailed Photos

Product Parameters

Equipment Process

Company Profile



the following question we need to know before making the price.

1	Location (where will be built?)	_____country, area
2	Size: length*width*height	_____mm*_____mm*_____mm
3	wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	snow load (max. snow height)	_____kn/m2, _____mm
5	anti-earthquake	_____level
6	brickwall needed or not	If yes, 1.2m high or 1.5m high
7	thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former
8	door quantity & size	_____units, _____(width)mm*_____(height)mm
9	window quanity & size	_____units, _____(width)mm*_____(height)mm
10	crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
