Multi-Storey Steel Frame Structure Prefabricatedbuilding

Basic Info

Model NO.	DRSS-004
Connection Form	Welded Connection and Bolt Connection
Member	Steel Column and Beam
Type of Steel For Building Structure	Box Column & H-Section Column
Carbon Structural Steel	Q355b & Q325b
Residential Wall Structure	Wall Support
Application	Steel Workshop, Steel Fabricated House, Frame Part, Hotel, Department, Library, Hospital
Surface Treatment	Galvanized and Painting as Customer′s Request
Service Life	More Than 50 Years
Colour	Red, Blue, Green, as Custmer′s Request
Service	Designing, Manufacturing, Shipping, Installing
Transport Package	Bulk Packing in Container
Specification	Customized
Origin	Qingdao, China
HS Code	73089000
Production Capacity	30000 Meric Tons a Year

Product Description

• Incredibly versatile
• Environmentally friendly
• Sustainable
• Affordable
• Durable
• Erect quickly and easily
• High strength
• Relatively low weight
• Ability to span large distances
• Adaptability to any kind of shape
• Ductility; when subjected to great force, it will not suddenly crack like glass, but slowly bend out of shape.

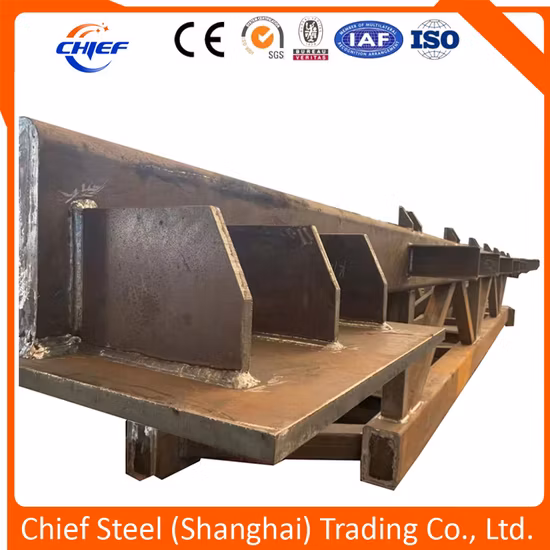

Main Structure	Column	Q355 Box column & H-section column
	Rafter & Beam	Q355 H- steel
	Surface processing options	1. Epoxy zinc-rich primer + epoxy mica termediate paint (120μm thickness) or customized
Secondarty Structure	Purlin	Q235B, C or Z section steel, galvanization 275g/m2
	Angle brace	Q235B, Angle steel
	Cross bracing	Q235B round bar, Angle steel
	Tie bar	Q235B, round pipe
	Batter brace	Q235B, round bar
Floor	Secondary Beam	Q355B Steel
	Floor Decker	Q235B steel sheet
Roof System	Roof panel options	1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm
		2. Steel plate, thickness 0.4mm/0.5mm
	Gutter options	1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm
		2. Painted, Pre-finished steel gutter, thickness 0.4mm / 0.5mm / 0.6mm
	Down spout	PVC pipe
	Steel flashing and cover	Steel sheet for roof ridge cap, gable wall end cover and corner cover
	Options	Roof skylight 1.8mm PVC sheet and stainless steel ventilator
Wall System	Wall panel options	1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm
		2. Steel plate, thickness 0.4mm/0.5mm
		3. Brick wall (provided by client)
	Door	1. Roller door for truck, size customized
		2. Sliding door for truck, size customized
		3. Access door, steel door, glass door etc.
	Window	PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized
	Steel flashing and cover	Steel sheet end cover and corner cover
Accessories and fasteners		Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-tapping screws, rivet etc.
Other Opptions	Crane	5T, 10T, 30T, etc.



Why Choose Us?

1.Quality Assurance: We use high-quality raw materials that you can compare with any other manufacturers.2. High-tech Manufacturing: We have the most advanced equipment which can make the production in high quality and efficiency. 3. We have an experienced professional team, including designers, engineers, architects, etc. We are ready to solve any problems you may have.4. After-sales service: We can provide installation videos or detailed installation instructions. If you need, We could arrane an engineer to guide you in person. we could also arrange a skilled team to install the building on site. (The cost should be discussed)5. Experienced trading team: Our sales representatives have many years of experience in steel structure trade. We have done lots of projects home and abroad.



We are not the biggest, we are the best.

Advanced Equipment In use

Q: Is your company a factory or a trader?
A: We are an integrated industry and trade company. You are welcomed to visiting our factory. The quality control flow and sales team will show you our professionalism
Q: Whats the quality assurance you provided and how do you control quality?
A: There is a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us
Q: Can you offer designing service?
A: Yes, we have more than 20 experienced designers. We could design full solution drawings as per your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tekla Structures (X steel) etc, we can design complex industrial building like office mansion, super market, plants, shipping mall, 5 stars hotel, etc. One-stop service is our outstanding superiority
Q: How about the delivery time?
A: The specific production time depends on the quantity of goods. Normally, it is about 10 to 30 days after all the details are confirmed and receiving the deposit. The delivery of Large order should be discussed with the management department in advance and then confirm the timing with you accordingly. Usually, large order will be delivered in batches
Q: What about the installation instrucions?
A: We will provide you installation videos and detailed installation instructions or online technical guidance. If you need, we can provide the service of installation guidance arrange a team to do the installation on site by extra.
Q: How about the payment?
A: All payment methods are acceptable. We prefer to 30% down payment by T/T, 70% balance before shipment.
If you have the design drawing, we could make the budget according to your design.If not, you could advise the following parameters so that we could make the design and quotation accordingly.

1. Location (where will be built? )	_____ country, area
2. Size:	_____ mm(L) * _____mm(W) * _____mm(H)
3. Live load on roof	_____ kn/m2,
4. Wind load (max. Wind speed)	_____ kn/m2, or _____km/h, or_____m/s
5. Snow load (max. Snow height)	_____ kn/m2, or _____mm
6. Anti-earthquake	_____ level
7. usage of the building:
8. Brickwall needed or not	if yes, 1.2m high or 1.5m high
9. Thermal insulation	if yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested;If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former.
10. Door quantity & size	_____ units, _____(width)mm*_____(height)mm
11. Window quanity & size	_____ units, _____(width)mm*_____(height)mm
12. Crane needed or not	If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
13. Others	Skylight belt, ventilator and any other accessories if needed.
